Commercial Roofing Projects.

Gate of heaven

We performed a complete replacement of an existing Tar & Gravel roof with a 190 SQ Fully Adhered TPO roofing system. The new system provides superior wind uplift resistance, energy efficiency, and long-term waterproof protection. Upon completion, Gate Of Heaven received a 20-Year Mulehide NDL (No Dollar Limit) Manufacturer's Warranty, providing long-term protection and peace of mind backed by the manufacturer. The project was completed safely and efficiently while adhering to OSHA safety standards.

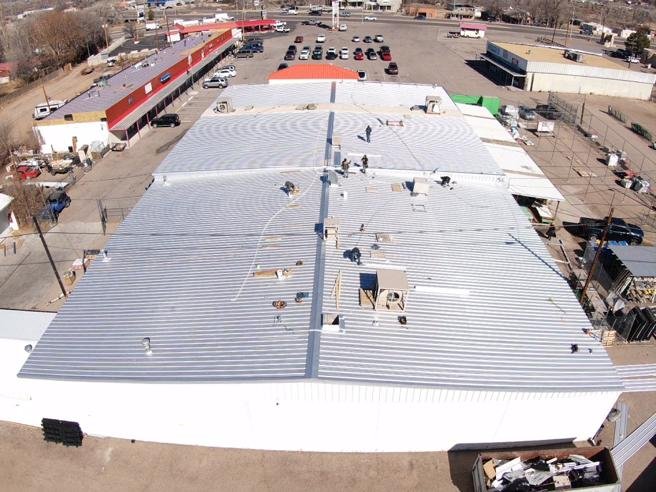

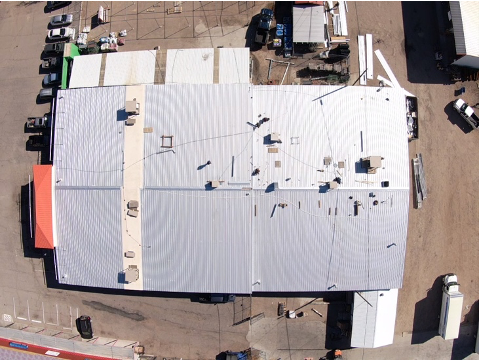

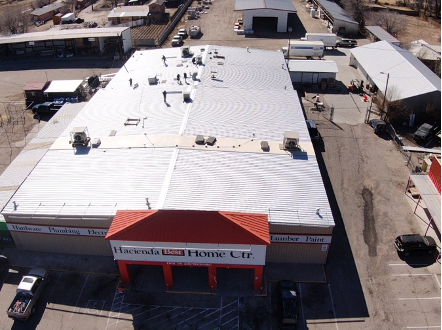

Hacienda Home center

Complete replacement of an aging corrugated metal roofing system with a new 205 SQ 26-Gauge metal roof. The new roofing system provides exceptional durability, weather resistance, and a service life of 40+ years with minimal maintenance. Thanks to favorable weather conditions and our experienced installation team, the project was completed in just one week while maintaining strict OSHA safety standards throughout the installation.

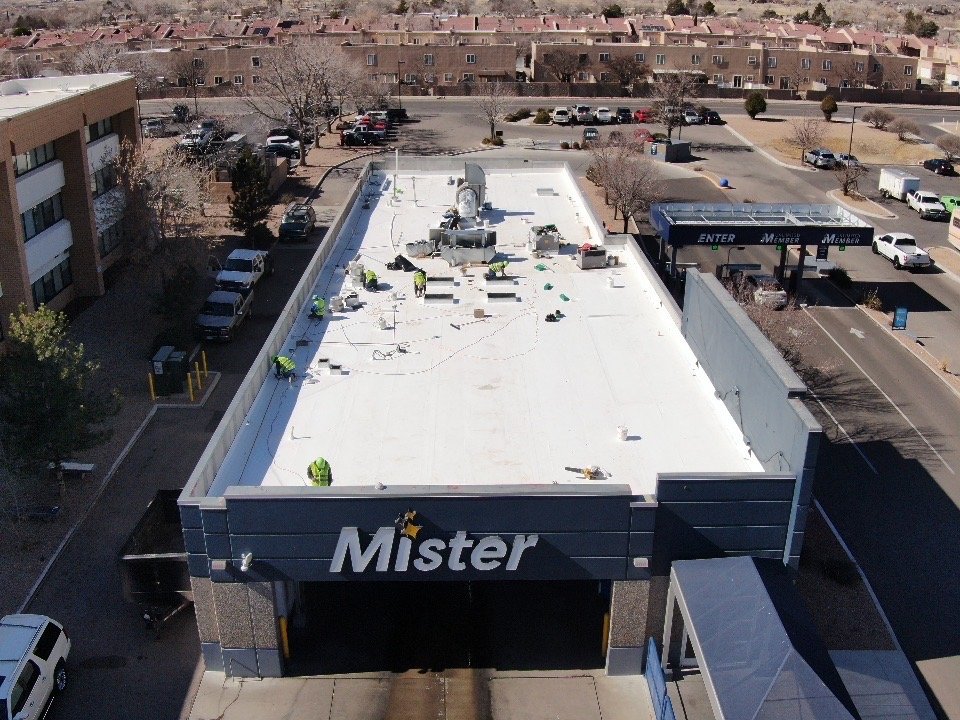

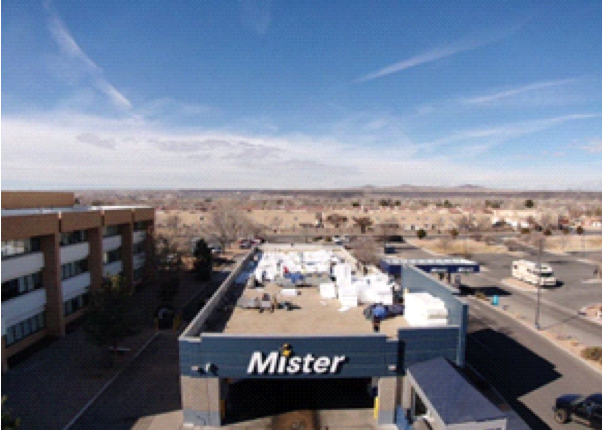

MISTER CAR WASH - Paseo del norte

This is one of the few roofs we have done for Mister, we performed a complete replacement of an existing Tar & Gravel roof with a 130 SQ Fully Adhered TPO roofing system. The new system provides superior wind uplift resistance, energy efficiency, and long-term waterproof protection. Upon completion, Mister Car Wash received a 20-Year Carlisle NDL (No Dollar Limit) Manufacturer's Warranty, providing long-term protection and peace of mind backed by the manufacturer. The project was completed safely and efficiently while adhering to OSHA safety standards.

200 Mcknight

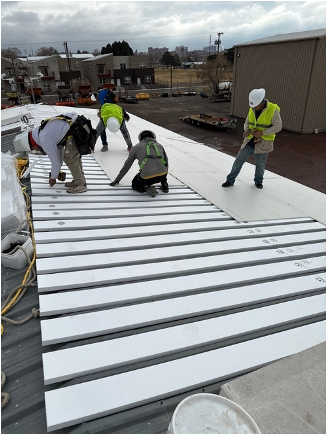

This is one of the few roofs we have done for Facility Build, we performed a complete conversion of an existing R-Panel metal roofing system to a 36 SQ Fully Adhered Tapered TPO roofing system with Flute Fill insulation. The Flute Fill system is installed directly into the low areas, or “flutes,” of the existing metal roof panels. This helps create a smooth, level surface for the new roofing system to be properly installed over the metal deck. Flute Fill is made from rigid EPS insulation, which provides strength, moisture resistance, and added energy efficiency. By filling the open spaces in the metal panels, it helps support the new TPO membrane, improves overall roof performance, and allows the tapered system to properly direct water toward drains or scuppers. The new system improves drainage, enhances energy efficiency, and provides long-lasting waterproof protection over the existing metal deck. Upon completion, Facility Build received a 20-Year GAF NDL (No Dollar Limit) Manufacturer's Warranty, backed by one of the industry's leading roofing manufacturers. Throughout the one-week installation, Facility Build remained fully operational with minimal disruption to daily business. The project was completed safely and efficiently while adhering to OSHA safety standards.

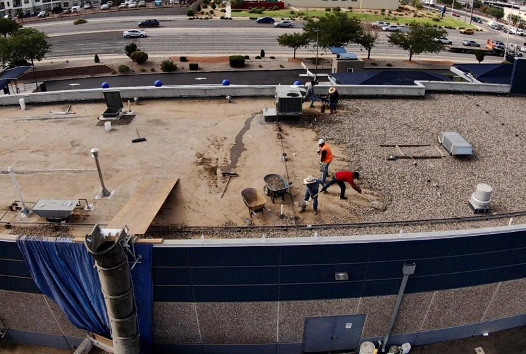

MISTER CAR WASH - coors nw

Complete replacement of an aging 96 SQ Ballasted EPDM roofing system with a new Fully Adhered Tapered TPO roofing system at Mister Car Wash. The new system provides superior waterproofing, improved drainage, enhanced energy efficiency, and exceptional wind uplift resistance for long-term performance. To ensure a seamless installation, our team coordinated the use of a crane to safely relocate rooftop HVAC equipment while keeping the facility fully operational throughout construction. Despite challenging weather conditions, the project was successfully completed in approximately three weeks. Upon completion, Mister Car Wash received a 20-Year Carlisle NDL (No Dollar Limit) Manufacturer's Warranty, backed by one of the industry's leading roofing manufacturers. All work was performed in accordance with OSHA safety standards and local building codes.

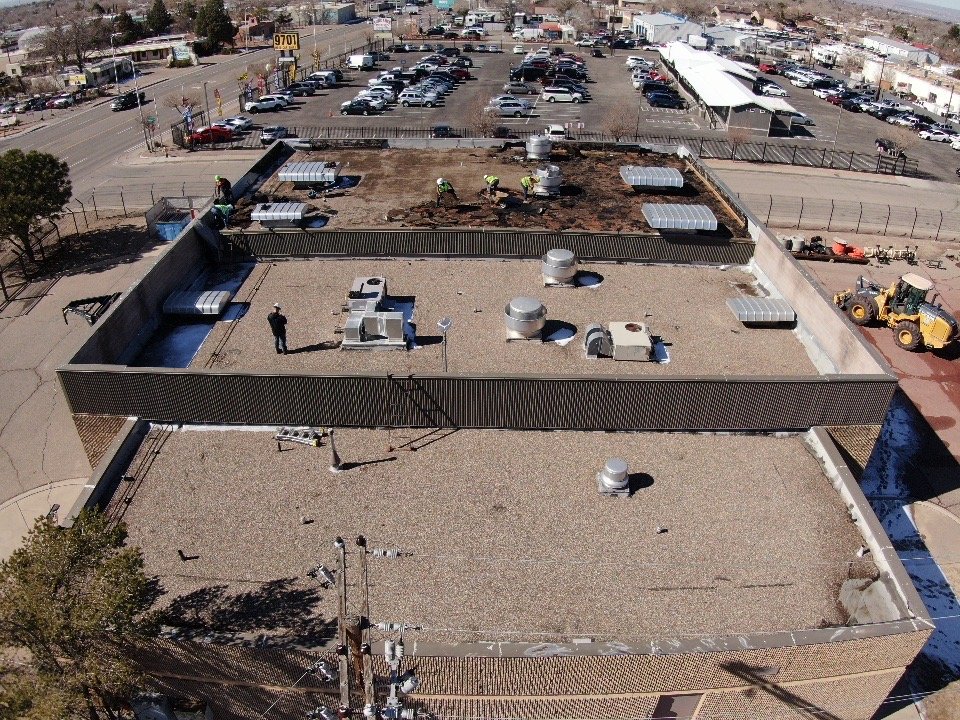

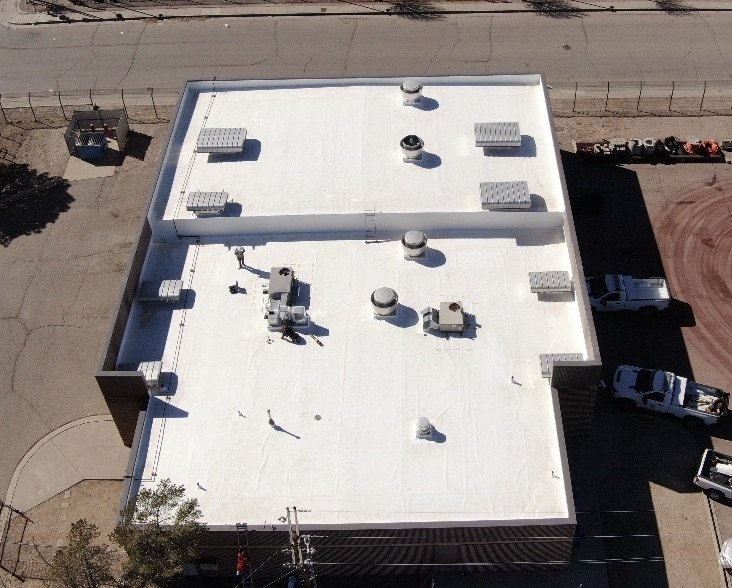

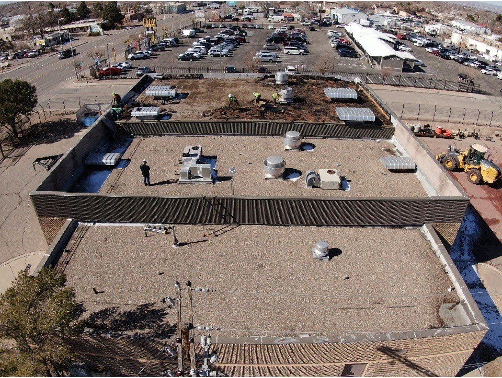

9605 Central

Complete replacement of an aging 88 SQ Tar & Gravel roofing system with a new Mechanically Fastened TPO roofing system featuring a 3 oz Polyester Mat (Poly Mat). The mechanically fastened system provides exceptional wind resistance and long-term waterproof protection by securing the membrane directly to the roof deck and heat-welding all seams for a watertight finish. The added Poly Mat creates a protective separation layer between the membrane and roof deck, improving durability, reducing abrasion, and enhancing the overall performance of the roofing assembly. Facility Build remained fully operational throughout the project, and thanks to favorable weather conditions, our team completed the installation in just three days while maintaining strict OSHA safety standards. Upon completion, Facility Build received a 20-Year GAF NDL (No Dollar Limit) Manufacturer's Warranty, backed by one of the industry's leading roofing manufacturers. Throughout the one-week installation, Facility Build remained fully operational with minimal disruption to daily business. The project was completed safely and efficiently while adhering to OSHA safety standards.

YES HOUSING INC

Complete replacement of an aging 131 SQ Tar & Gravel roofing system with a new Fully Adhered Tapered TPO roofing system featuring DensDeck® roof board for added durability and impact resistance. During tear-off, our team discovered extensive deteriorated decking and replaced 95 squares of OSB to restore a solid structural foundation before installation. We also installed rooftop walk pads to provide safe access for future maintenance while protecting the TPO membrane from foot traffic. Despite challenging weather conditions, the project was completed in approximately three weeks, delivering improved drainage, long-term waterproof protection, and enhanced roof system performance. Upon completion, YES Housing received a 20-Year GAF NDL (No Dollar Limit) Manufacturer's Warranty, backed by one of the industry's leading roofing manufacturers.

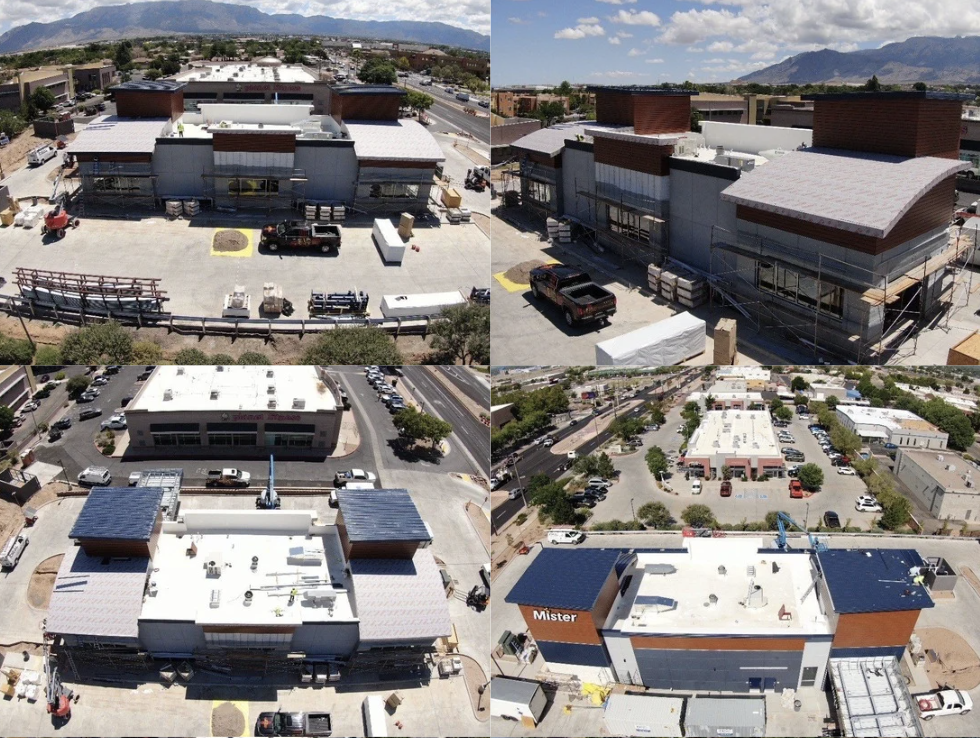

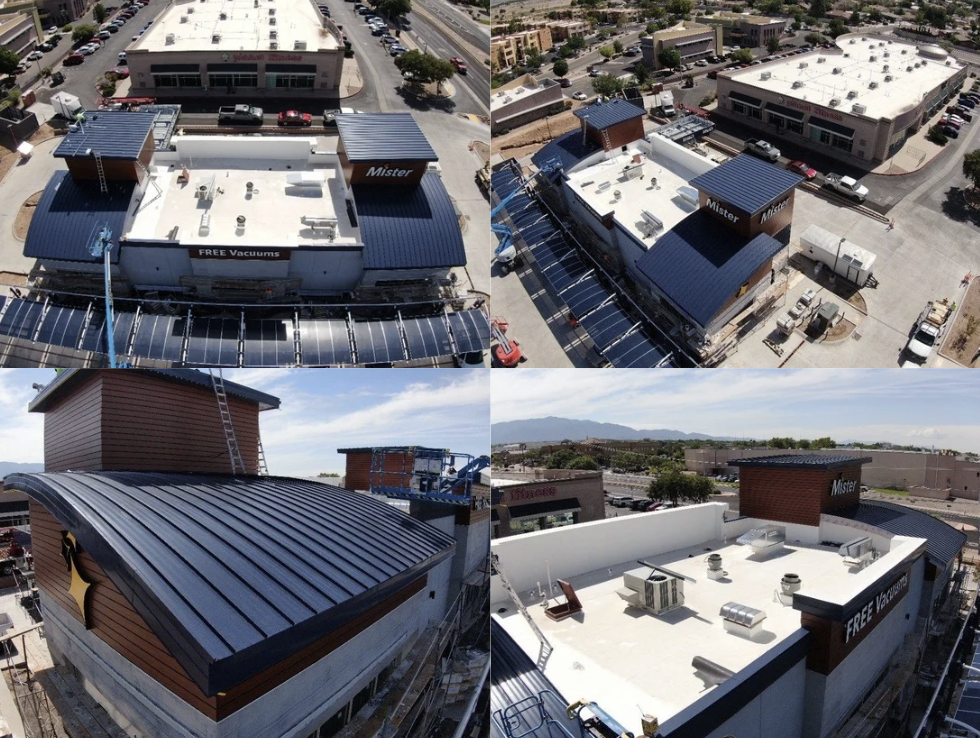

MISTER CAR WASH - ALAMEDA

This new construction project featured the installation of a 55 SQ roofing system consisting of both 60 mil Mechanically Fastened Tapered TPO and Standing Seam Metal Roofing, along with a complete commercial gutter system. The TPO assembly included tapered Poly ISO insulation to promote positive drainage, while the standing seam metal roof utilized 24-gauge concealed-fastener panels over premium underlayment for exceptional durability and weather resistance. The project also included custom metal flashing, rooftop walk pads, parapet trim, 150 linear feet of commercial box gutters, oversized downspouts, and custom drainage components, delivering a complete, high-performance roofing system built for long-term protection and minimal maintenance. Upon completion, Mister Car Wash received a 20-Year Mulehide NDL (No Dollar Limit) Manufacturer's Warranty, backed by one of the industry's leading roofing manufacturers.

DK GAS STATION

Zia Roofing & Gutters was proud to complete this 57 SQ Mechanically Fastened TPO roof replacement for DK Gas Station, a valued returning customer. The project included complete tear-off to the roof deck, installation of ½-inch fan fold insulation, a new 60-mil TPO roofing system, new flashing at all penetrations, parapets, canals, coping, downspouts, and conductor boxes to create a durable, watertight roofing assembly. Completed under City of Albuquerque permits, the project is backed by our 5-Year Workmanship Warranty, and the TPO roofing system includes a 20-Year Carlisle NDL (No Dollar Limit) Manufacturer's Warranty, providing long-term protection and peace of mind. Throughout construction, our team maintained a safe, clean jobsite while minimizing disruption to the customer's daily operations.

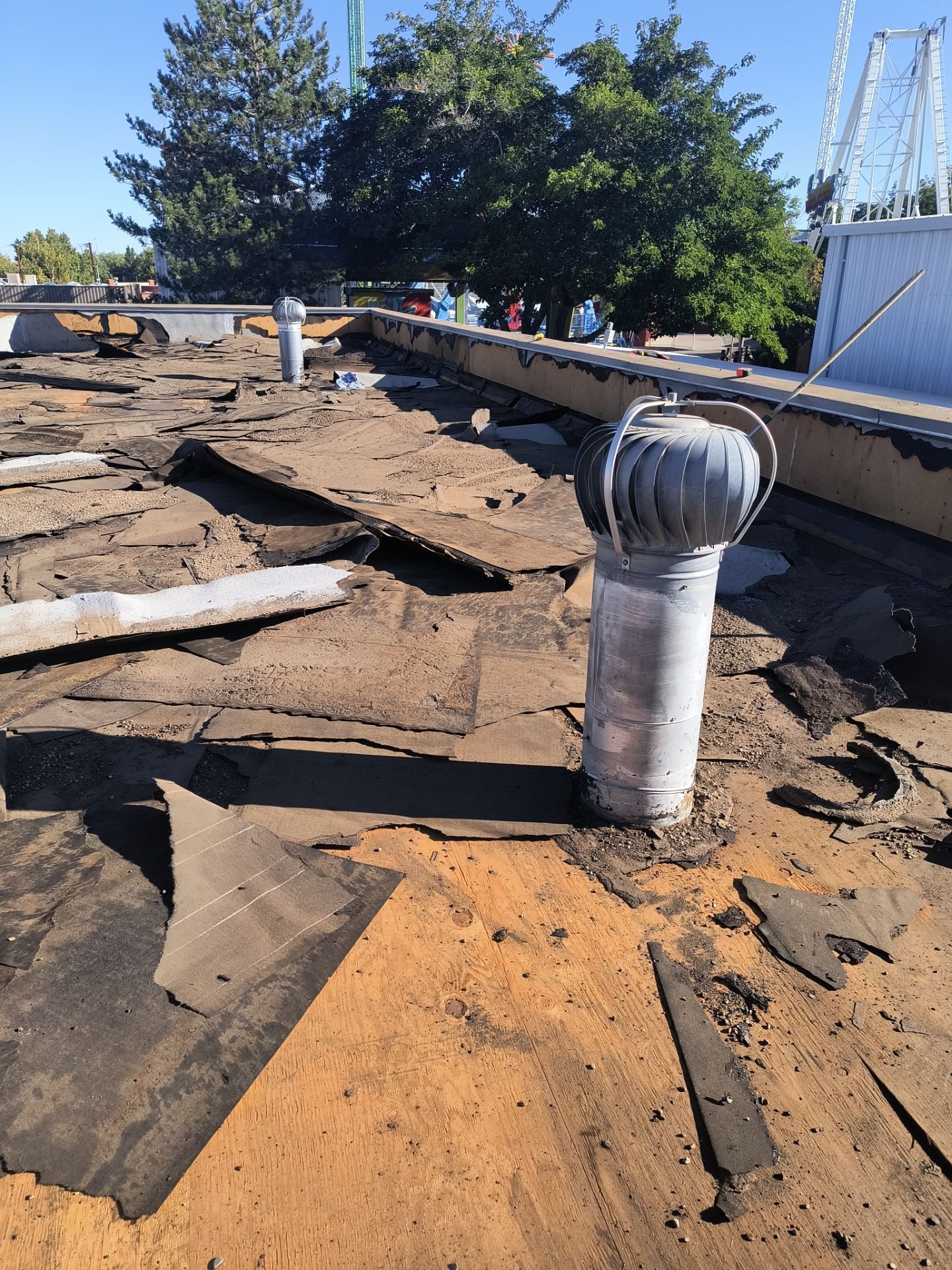

CLIFFS AMUSEMENT PARK

Zia Roofing & Gutters was selected to complete this 31 SQ Mechanically Fastened TPO roof replacement for a local amusement park. The project included a complete tear-off to the roof deck, installation of a 3 oz polyester mat, 60-mil Single Ply TPO membrane, new 24-gauge metal coping, TPO-coated scuppers, reinforced flashings, and professionally heat-welded seams to create a durable, watertight roofing system. Because the facility remained active throughout construction, our team carefully coordinated the project to minimize disruption while maintaining strict OSHA safety standards. The completed roof is backed by a 20-Year GAF Integrated NDL Manufacturer's Warranty, providing long-term protection and reliable performance.

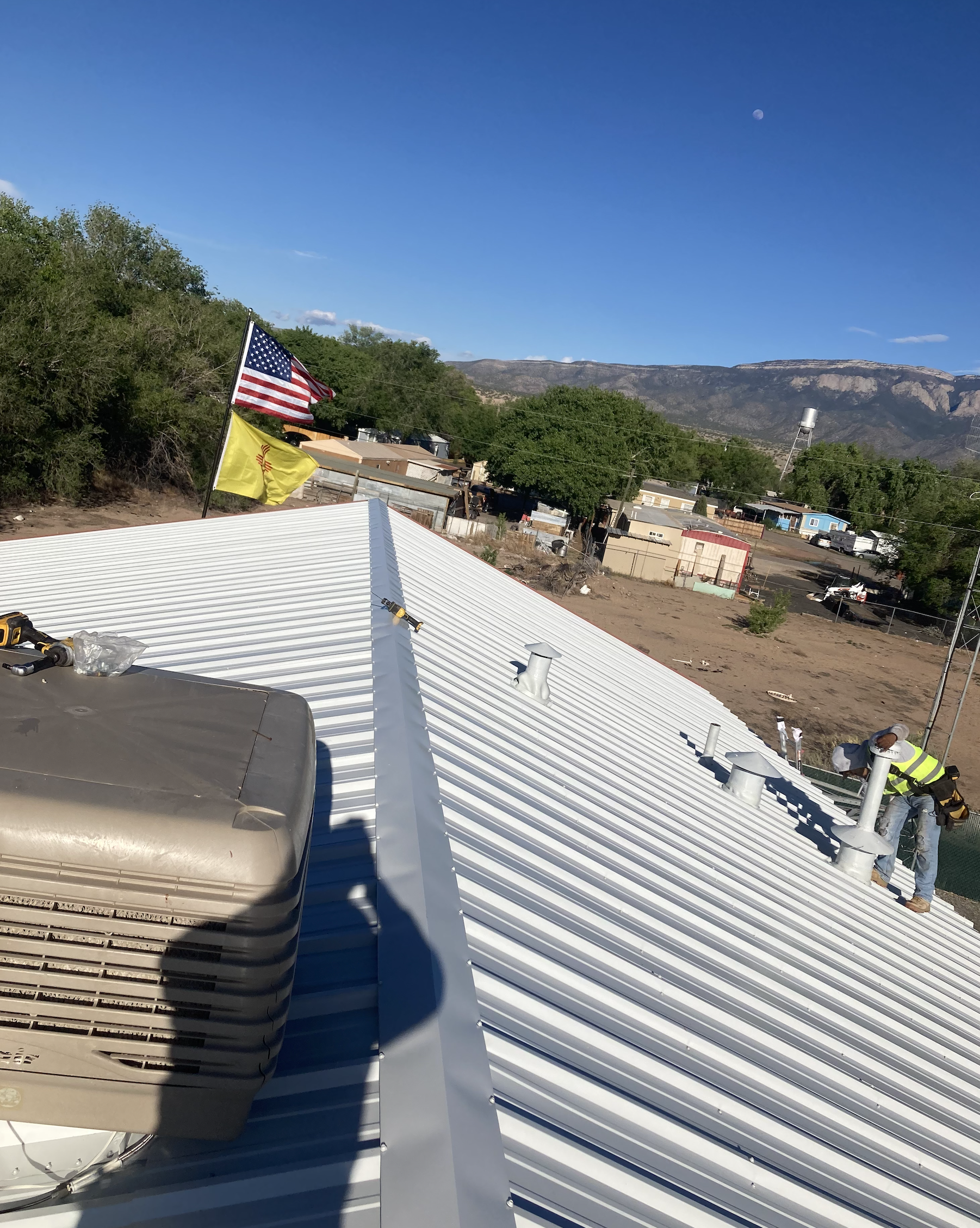

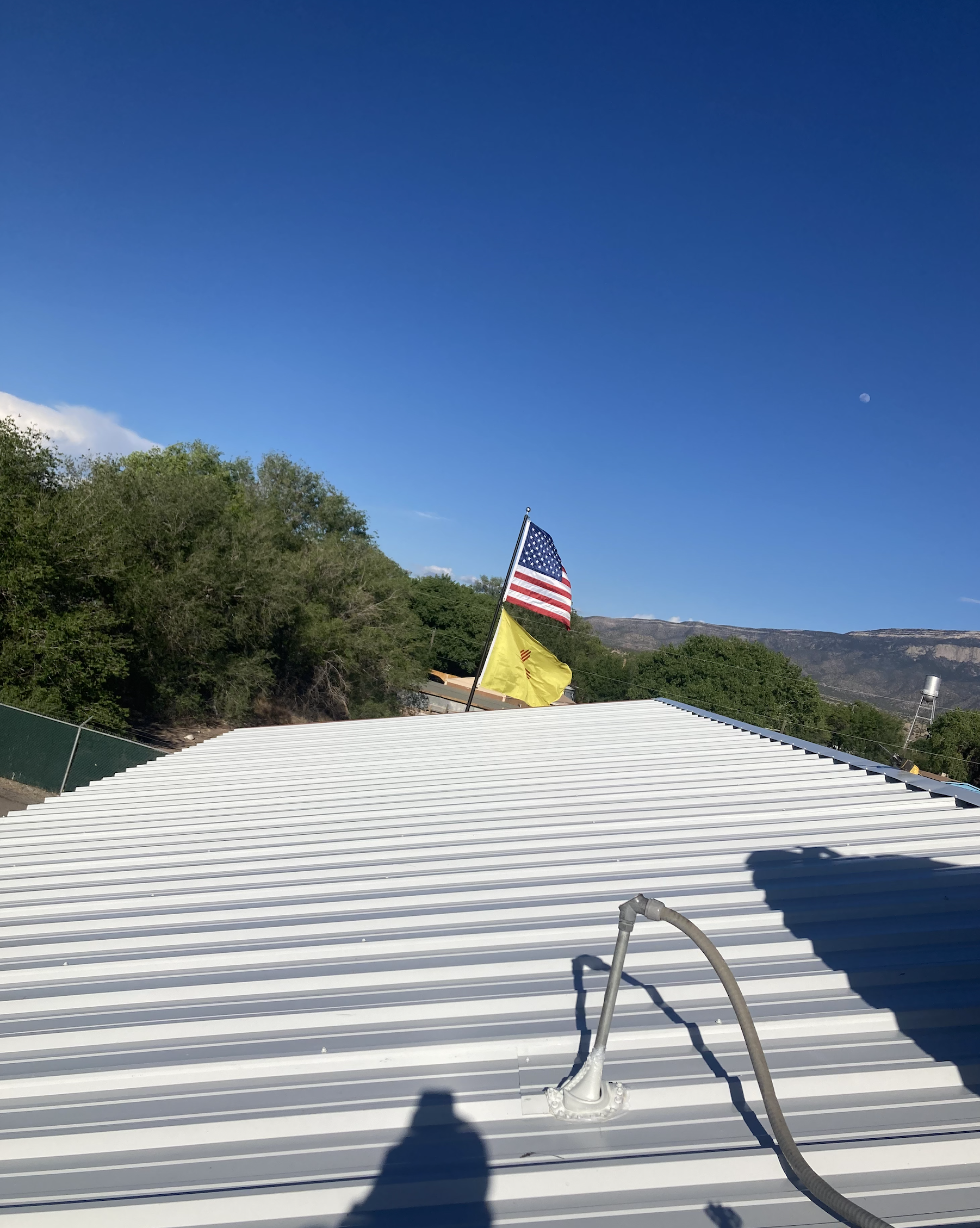

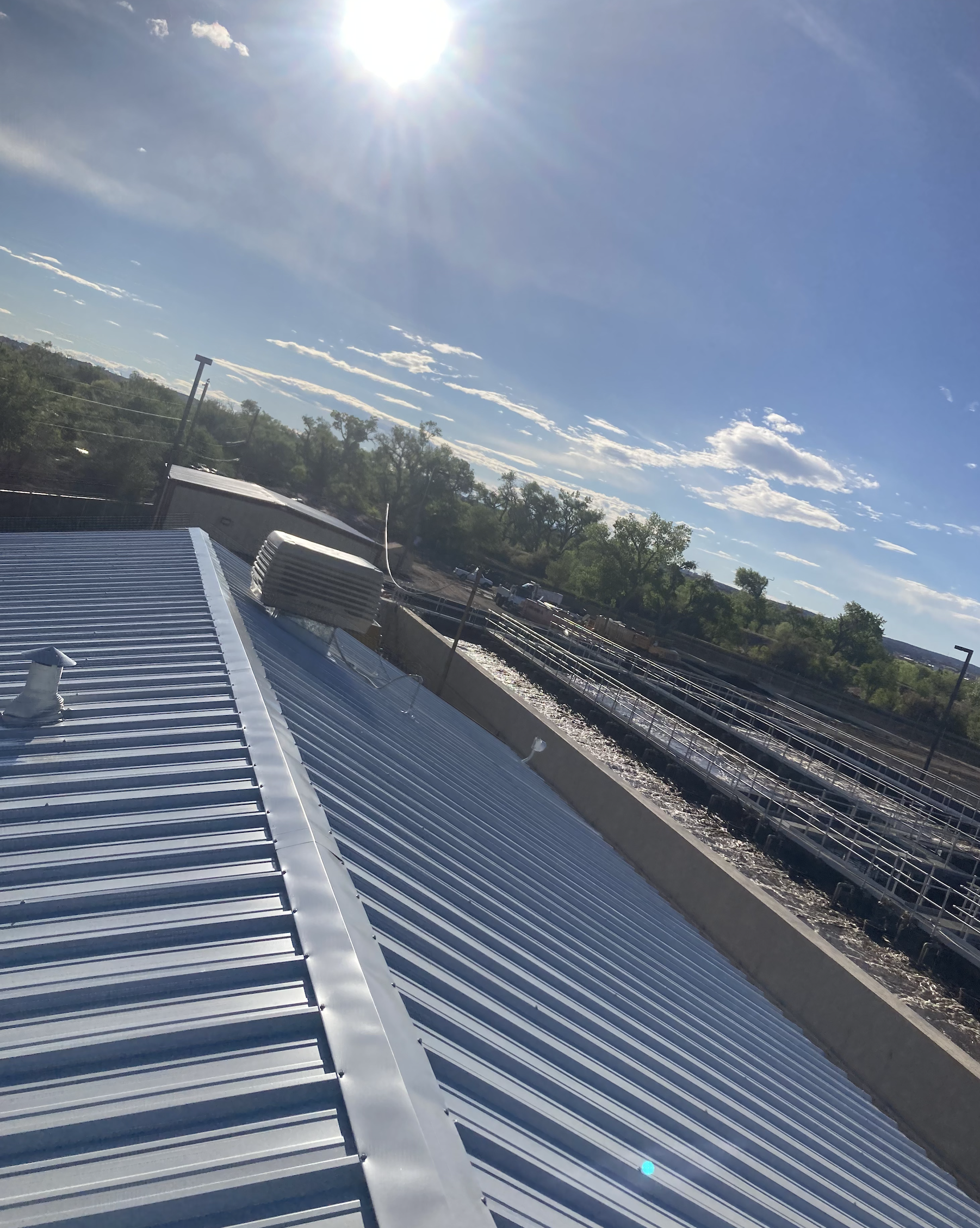

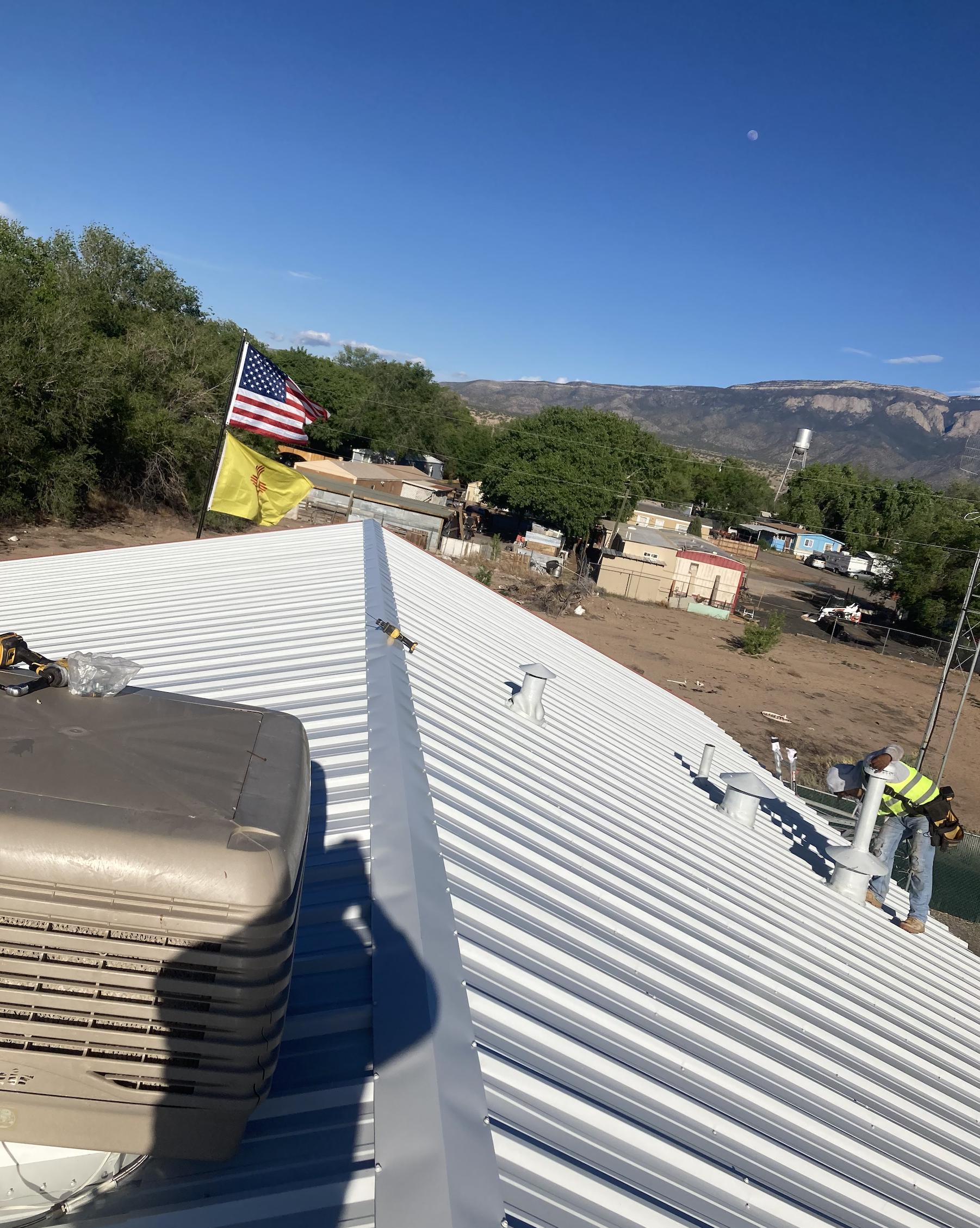

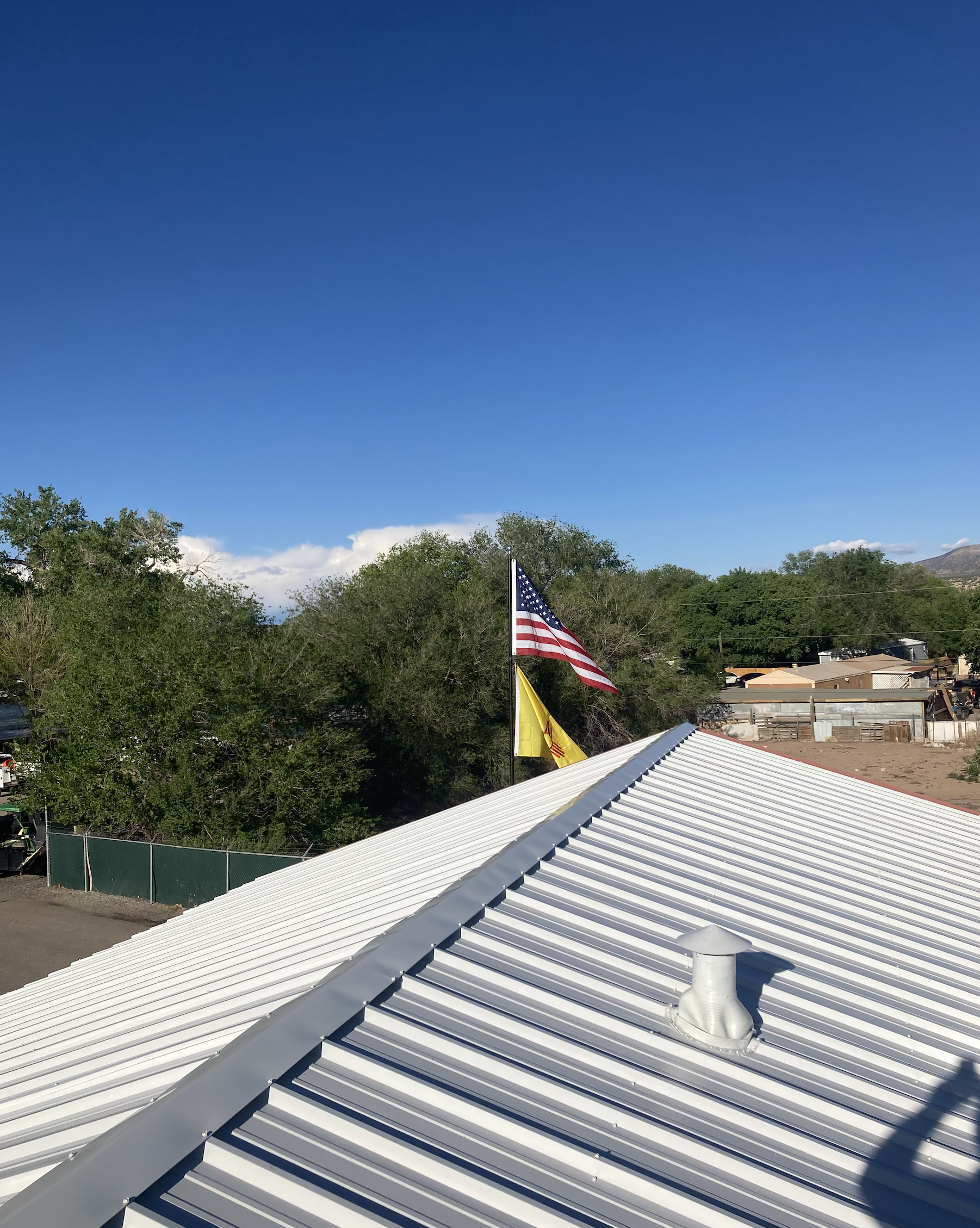

Town of Bernalillo Water Waste Facilities

This project included the installation of 24 SQ of 26-gauge metal roofing and 16 SQ of 60-mil Fully Adhered TPO roofing, providing a complete roofing solution for both the pitched and low-slope sections of the building. The metal roof was installed over premium synthetic underlayment with new ridge vents, ridge caps, and sealed penetrations for long-term weather protection. The low-slope section received 1-inch insulation, a 60-mil TPO membrane, heat-welded seams, reinforced flashing, and TPO-coated drip edge to create a durable, watertight roofing system with improved drainage and energy efficiency. The completed project is backed by our 5-Year Workmanship Warranty and a 20-Year Mulehide NDL (No Dollar Limit) Manufacturer's Warranty on the TPO roofing system, delivering long-lasting performance and peace of mind.

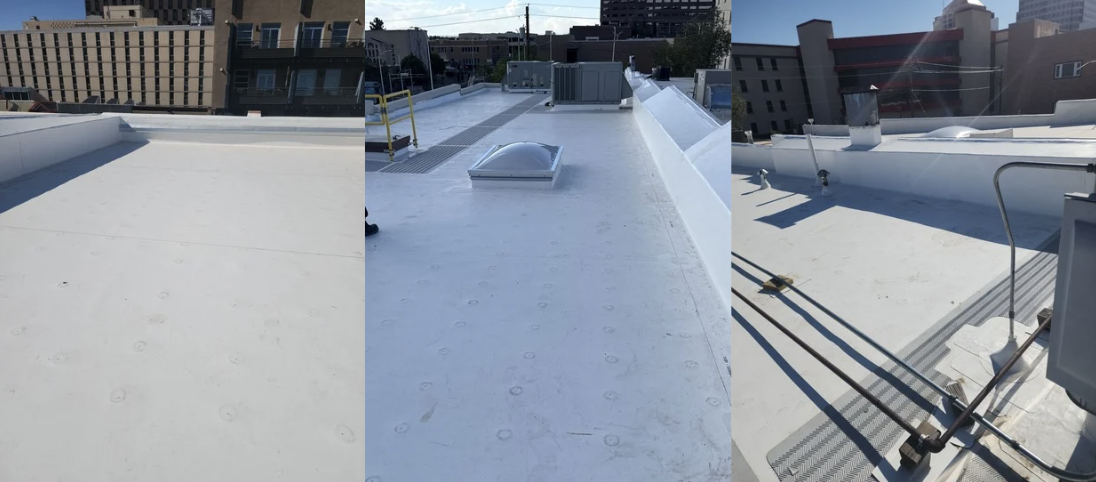

STUDIO 519

Complete replacement of an aging 44 SQ Modified Bitumen roofing system with a new 80-mil Induction-Welded PVC roofing system. The project included a full tear-off to the roof deck, installation of DensDeck coverboard, 3½-inch Polyiso insulation, tapered crickets for positive drainage, reinforced flashing at all penetrations, new skylights, rooftop safety railings, and 175 linear feet of PVC walk pads to protect high-traffic areas. The induction-welded PVC system delivers exceptional chemical resistance, superior waterproofing, and long-term durability, making it an ideal solution for commercial facilities. The completed roof is backed by a 20-Year GAF NDL Warranty, providing lasting protection and peace of mind.

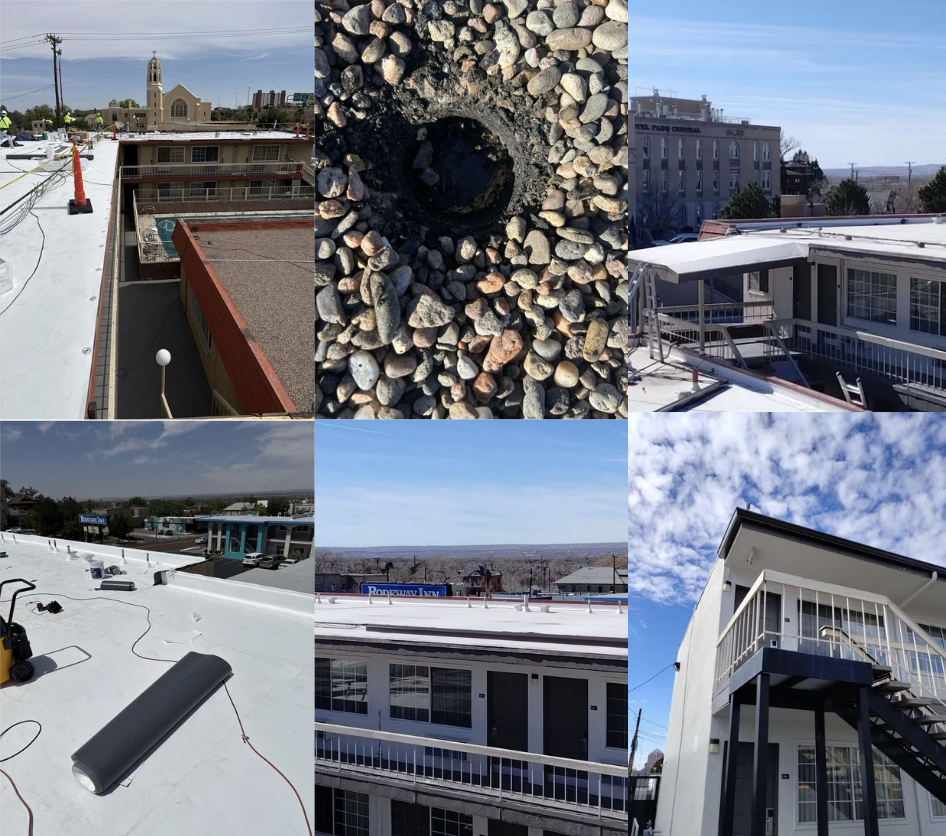

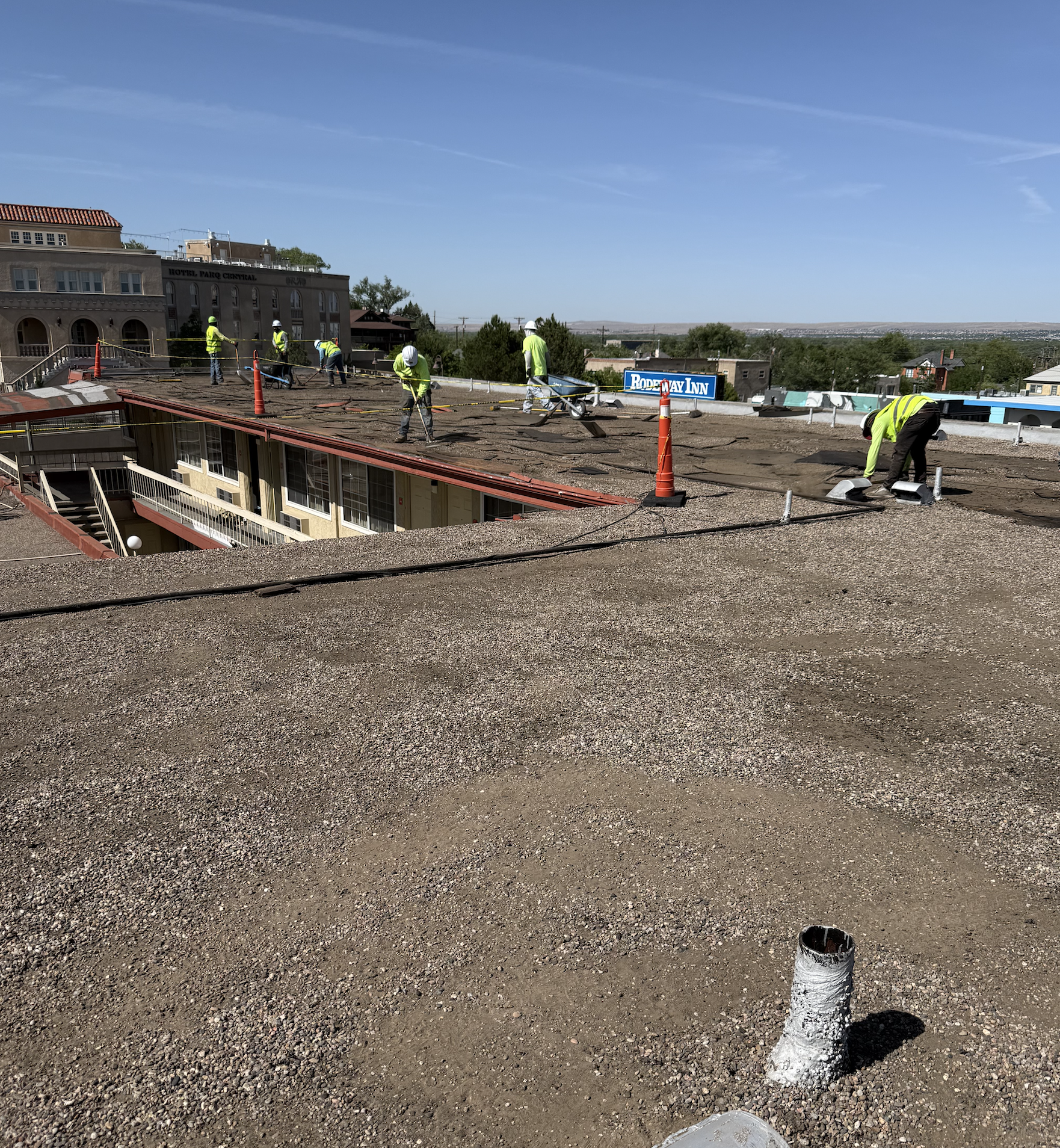

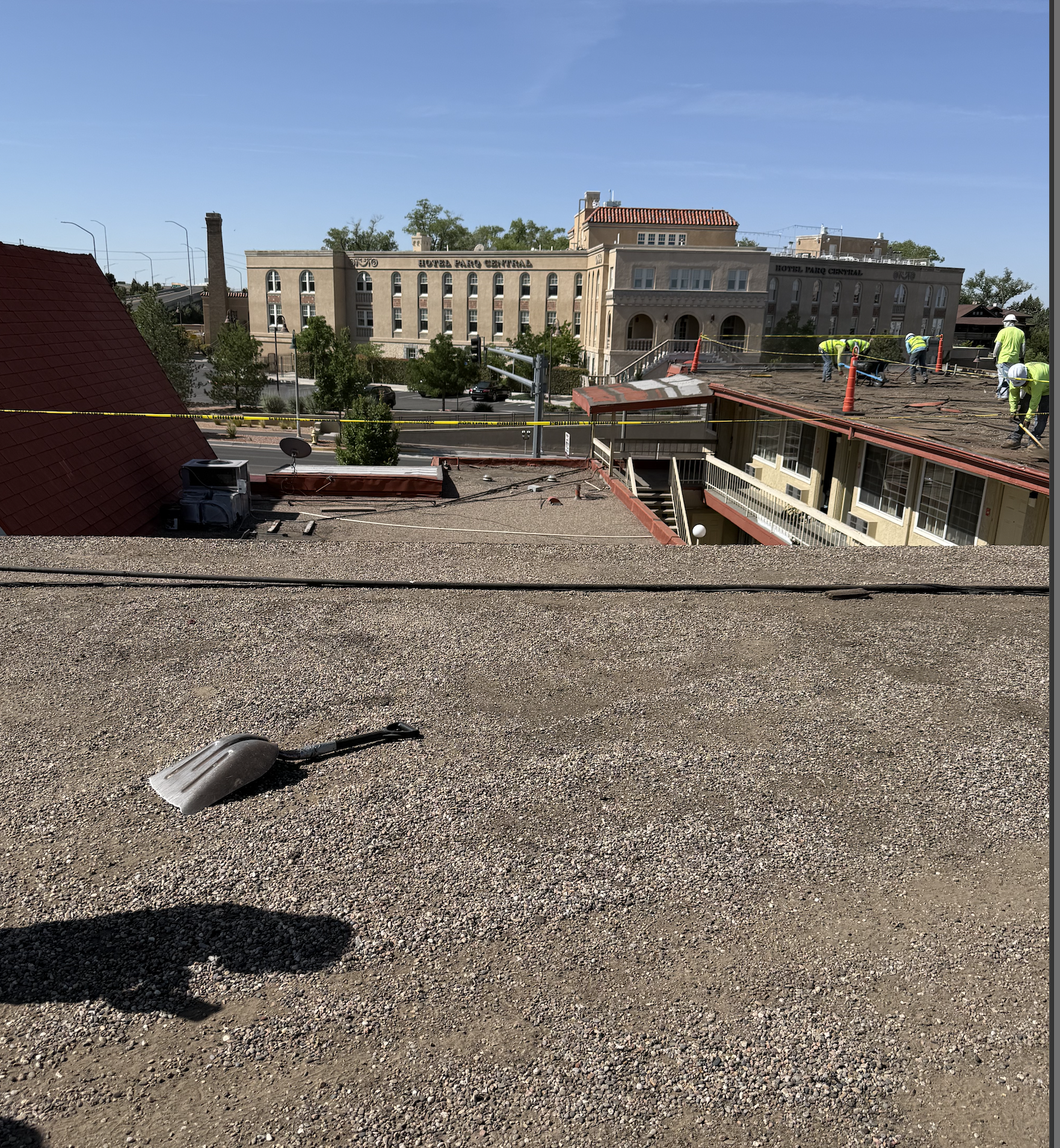

SUPER 8 MOTEL

Zia Roofing & Gutters completed this commercial roofing and gutter restoration project for Super 8 Motel, replacing an aging 80 SQ Tar & Gravel roofing system with a new 60-mil Mechanically Fastened GAF TPO roofing system. The project also included new 24-gauge parapet cap flashing, 285 linear feet of seamless K-style gutters, new 6x4 downspouts, and upgraded roof drainage with new internal drains. All penetrations and seams were professionally flashed and heat welded to create a durable, watertight roofing system designed for long-term performance. The project was completed with minimal disruption to motel operations while maintaining strict OSHA safety standards and high-quality workmanship throughout. The completed roof is backed by a 20-Year GAF NDL Warranty, providing lasting protection and peace of mind.

Golf Course plaza

Complete installation of an 84 SQ Mechanically Fastened 60-mil PVC roofing system designed to provide long-term waterproofing and improved drainage performance. Because the project was completed during New Mexico's monsoon season, our team strategically performed the roof tear-off in carefully planned sections to keep the building protected from unexpected weather throughout construction. The project included tapered ½-inch fan fold insulation to improve roof slope, new PVC-coated canals and scuppers, heat-welded seams, reinforced flashing at all penetrations and HVAC curbs, and termination bars along the parapet walls. Upon completion, the roof underwent a comprehensive water test and final quality inspection to verify watertight performance. The completed roofing system is backed by our 5-Year Workmanship Warranty and a 20-Year Carlisle Integrated NDL (No Dollar Limit) Manufacturer's Warranty, providing long-term protection and peace of mind.

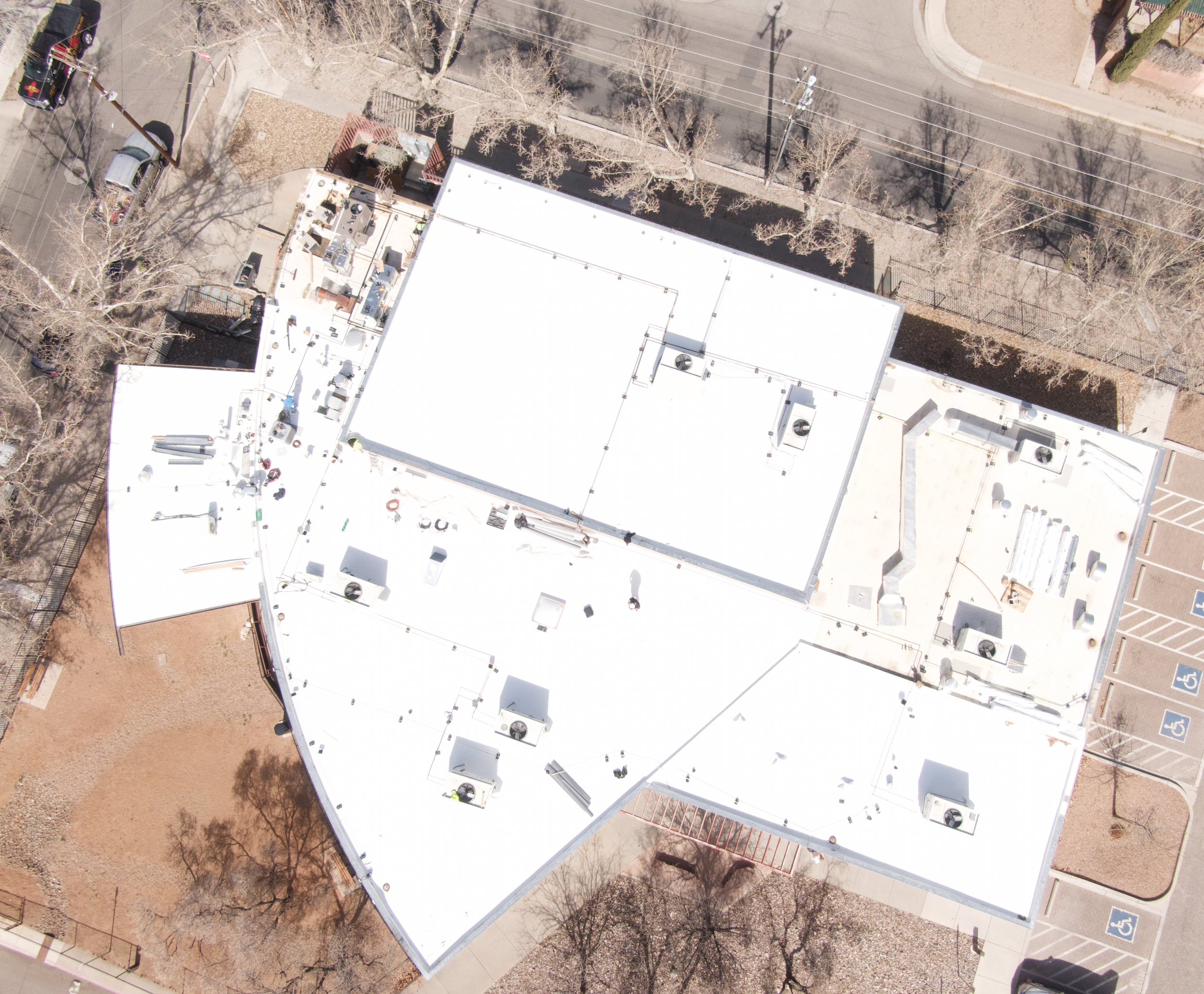

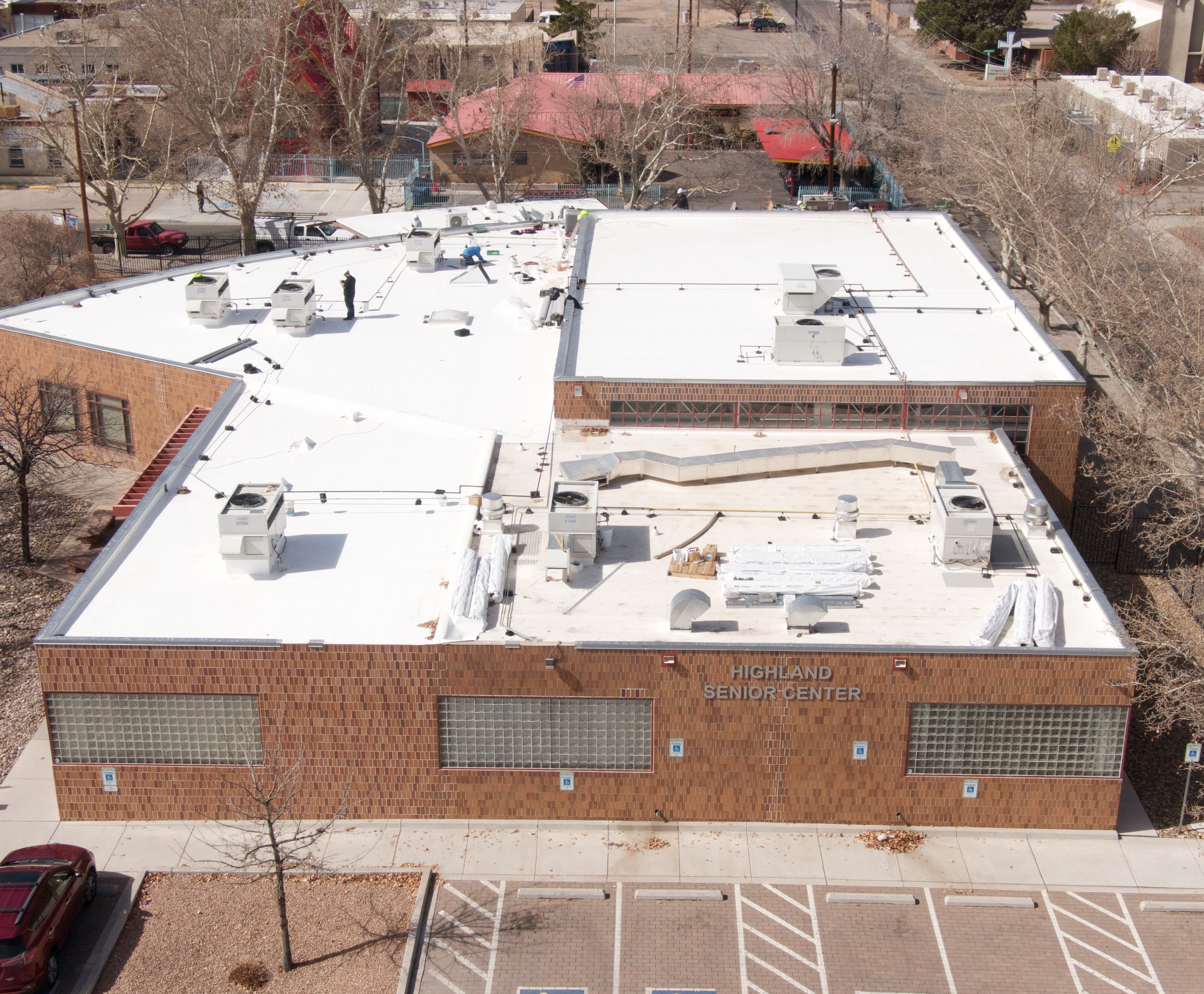

HIGHLAND SENIOR CENTER

Zia Roofing & Gutters partnered with a trusted general contractor to install a new 131 SQ 80-mil Fleece-Back PVC roofing system for a local senior center. The project included curb modifications for new rooftop mechanical equipment, removal of obsolete penetrations, installation of new rooftop curbs, and a mechanically attached 80-mil PVC membrane with professionally heat-welded seams for superior waterproofing. Additional work included PVC-coated scuppers, reinforced flashing, termination bars, and continuous sealant detailing to ensure long-term weather protection. Completed while coordinating with an active kitchen remodel, the project delivered a durable, high-performance roofing system with minimal disruption to facility operations.

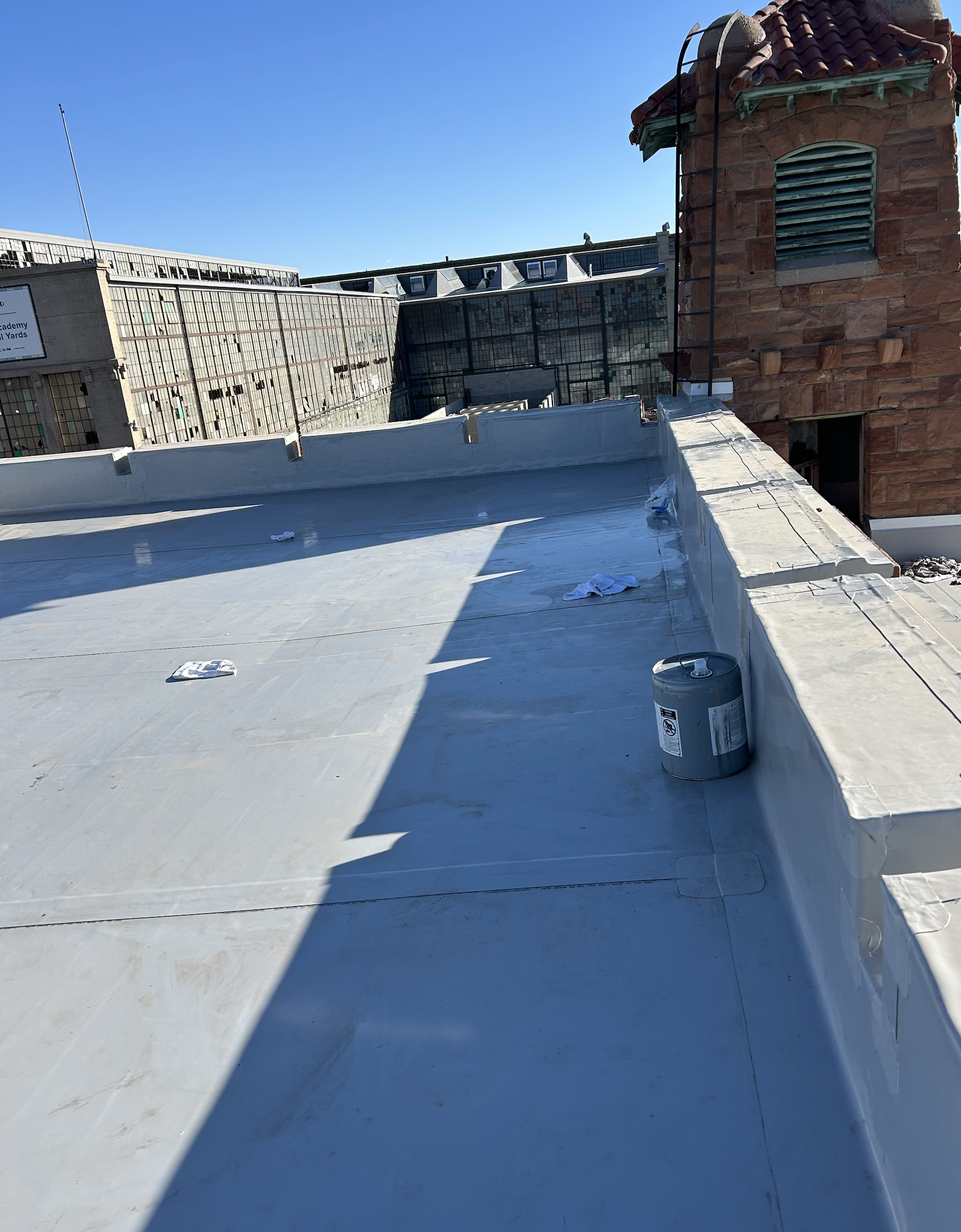

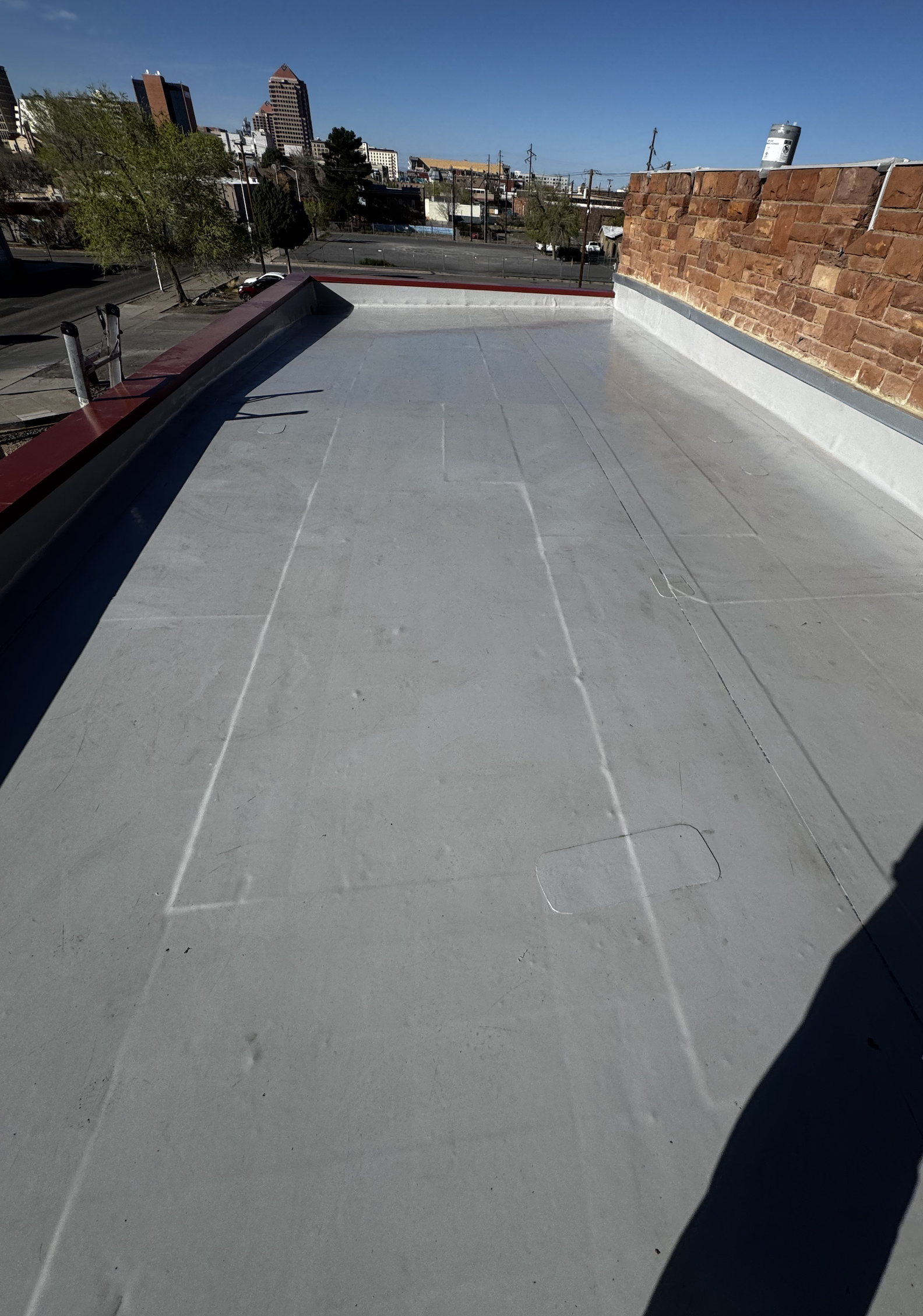

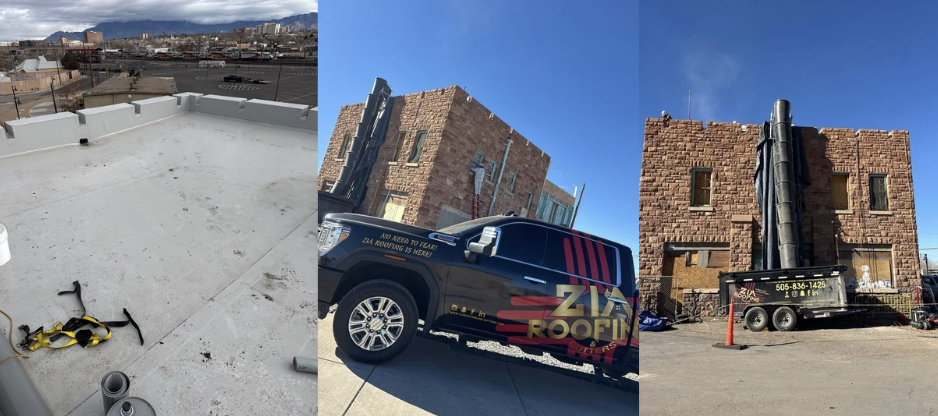

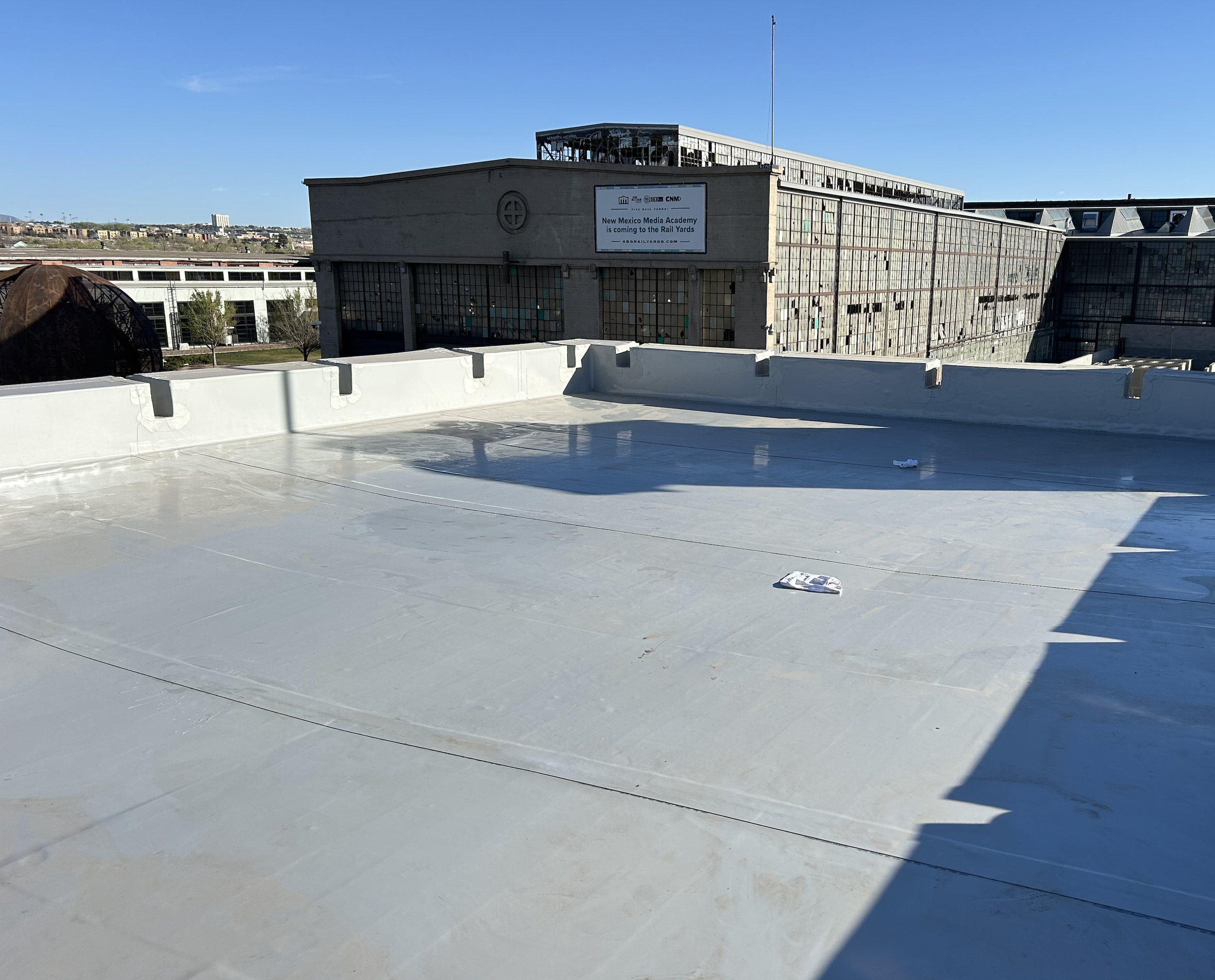

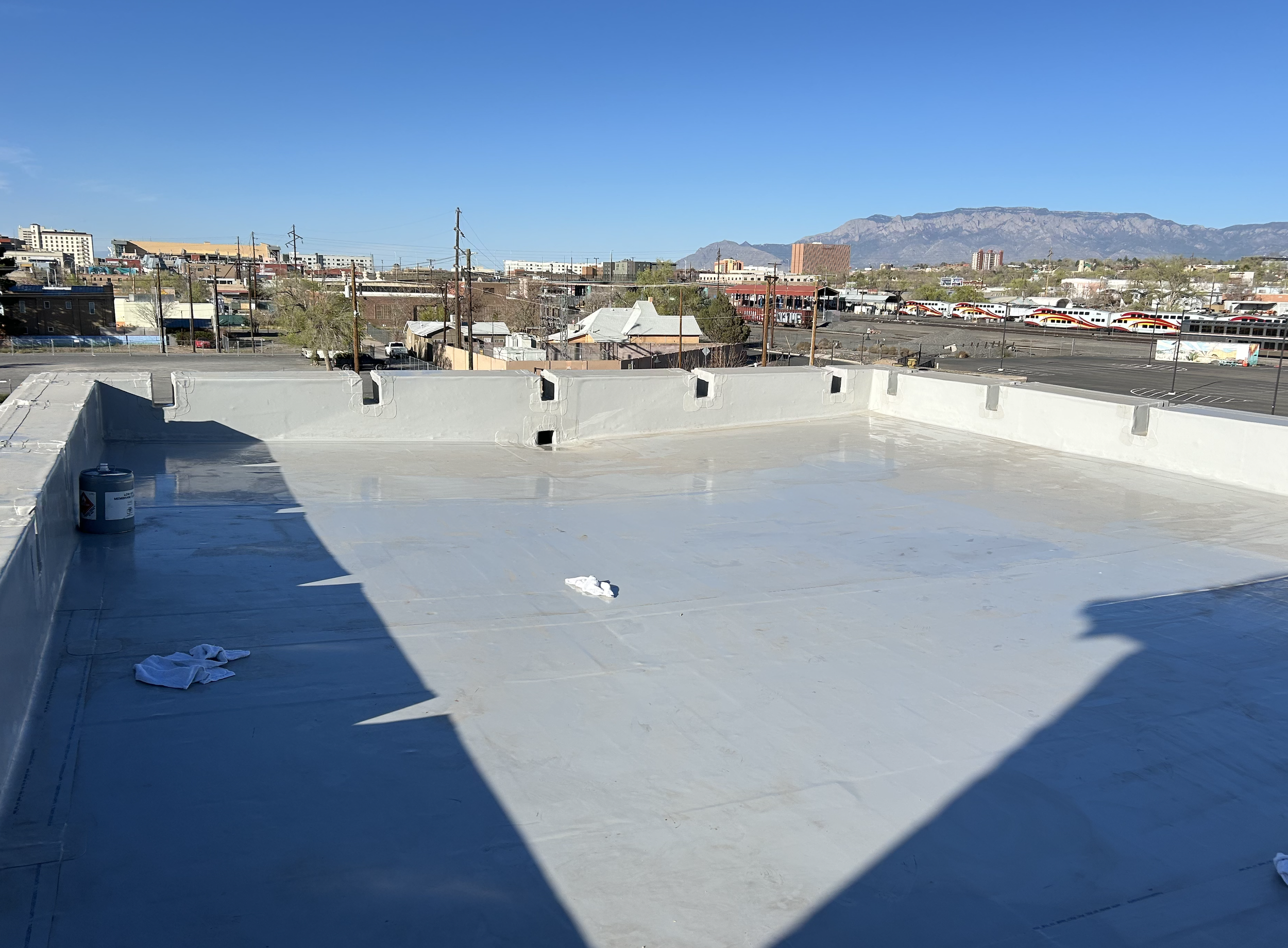

railyard firehouse

Zia Roofing & Gutters completed this 18 SQ Fully Adhered 80-mil Carlisle PVC roofing system for the historic Albuquerque Rail Yards Firehouse, combining modern roofing performance with historic preservation. The project included adhered Poly ISO insulation, cover board, a fully adhered gray PVC membrane with heat-welded seams, reinforced flashing, PVC-coated scuppers, custom coping, and detailed waterproofing around all rooftop penetrations. To preserve the building's original character, our team also restored the cupola roofing areas with traditional clay tile. The completed roofing system is backed by a 20-Year Carlisle NDL (No Dollar Limit) Manufacturer's Warranty, providing long-term protection while respecting the historic integrity of this iconic structure.
